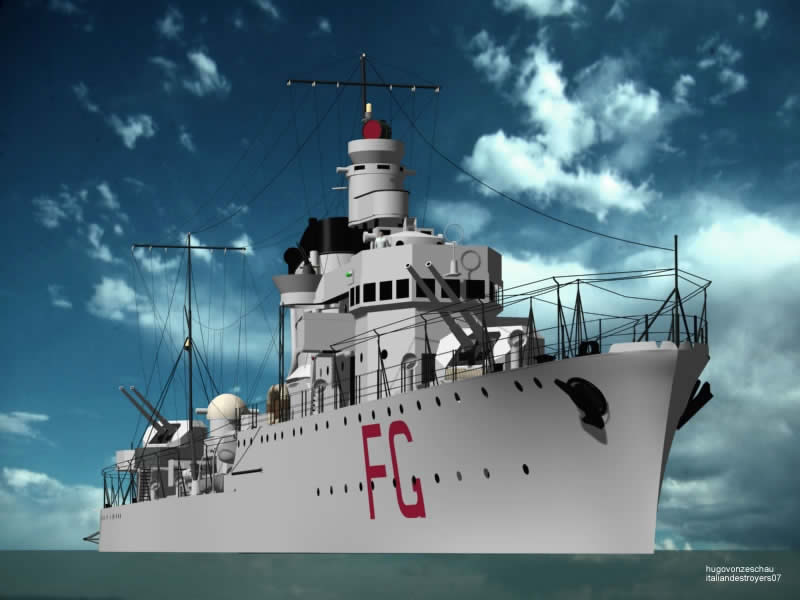

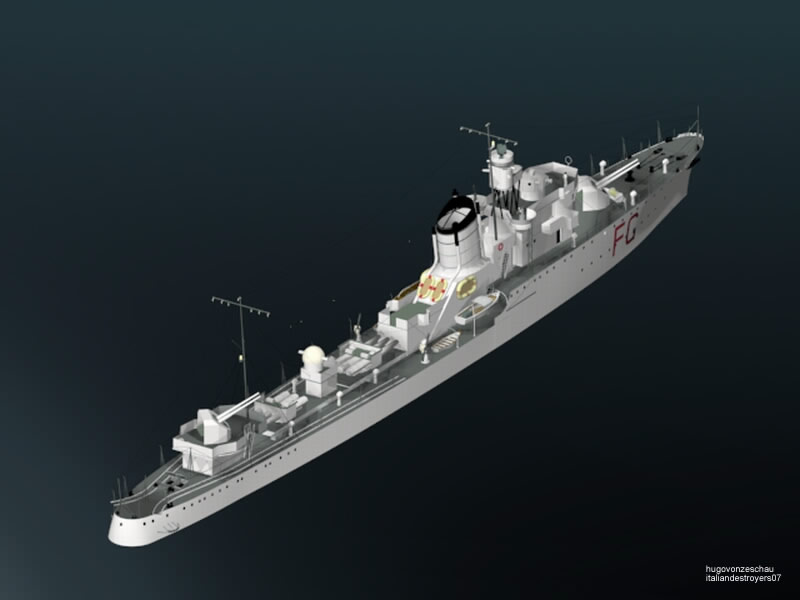

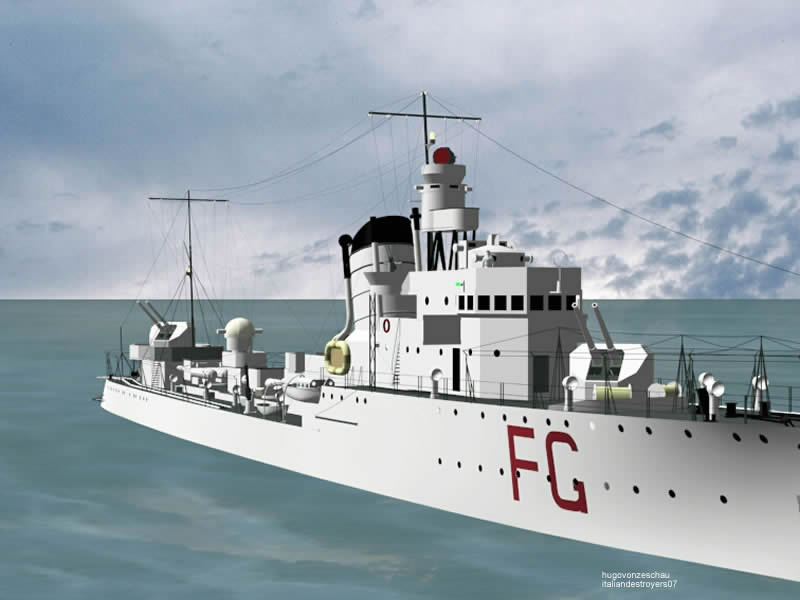

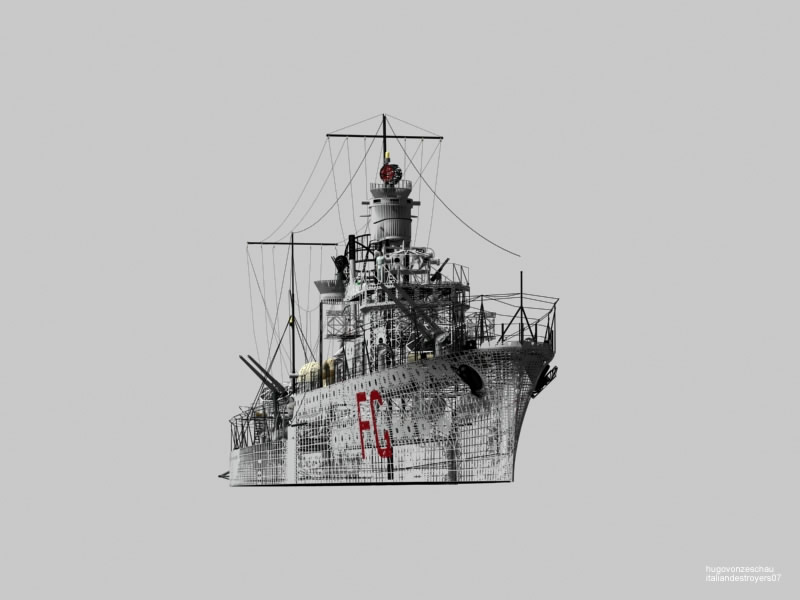

3-D
Full ship images |
 |
 |
 |
 |
 |
 |
 |
 |

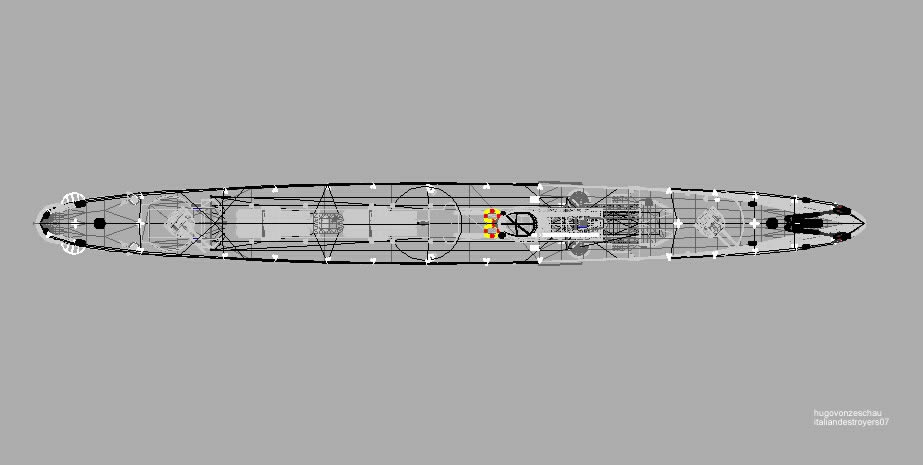

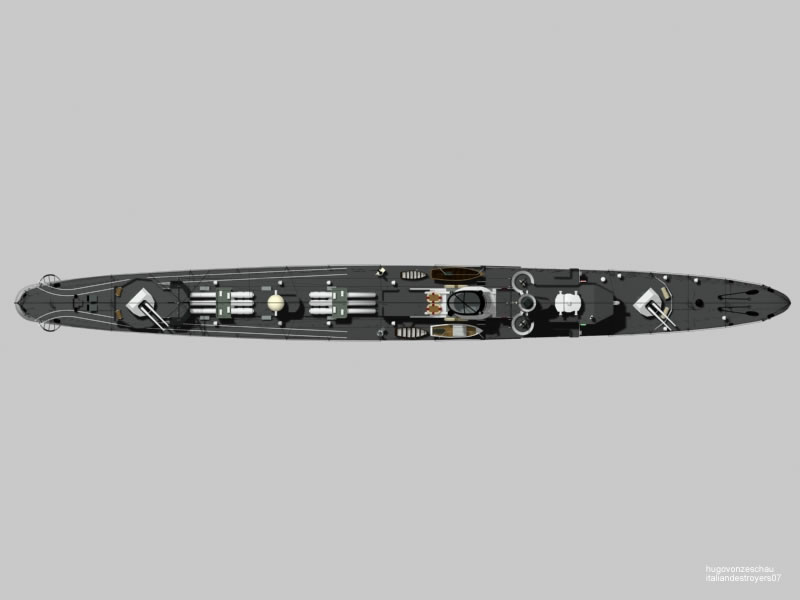

Plan
views |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |

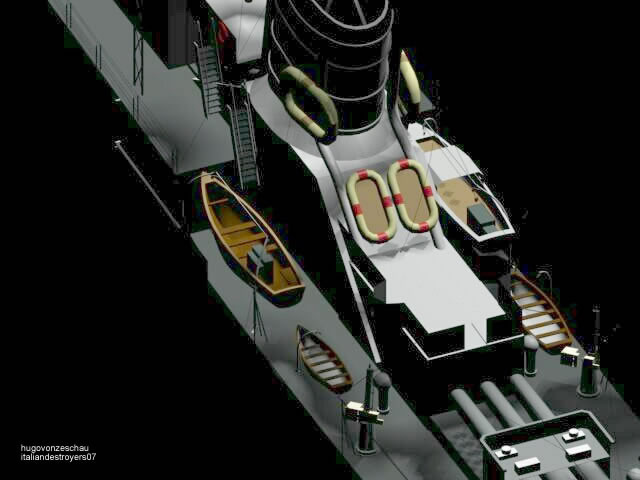

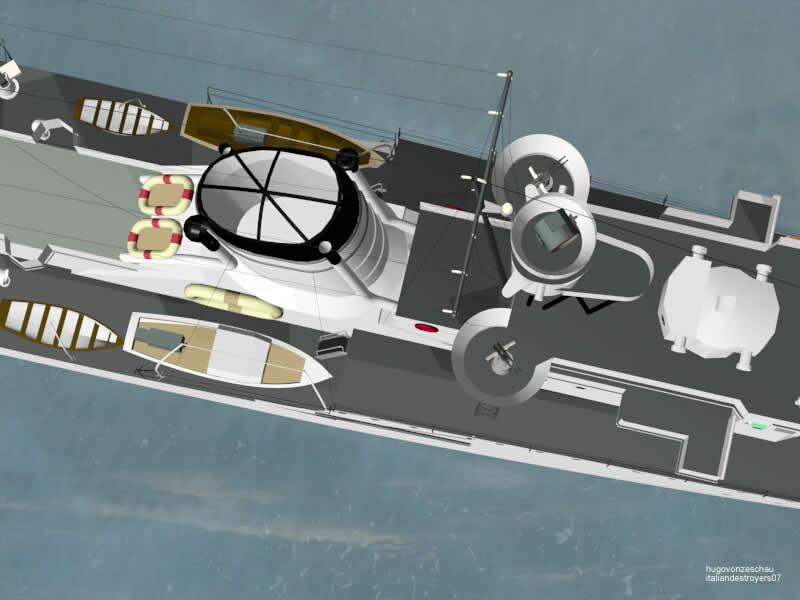

Bridge
& funnel details |
 |
 |
|
 |
 |
||||
 |
 |

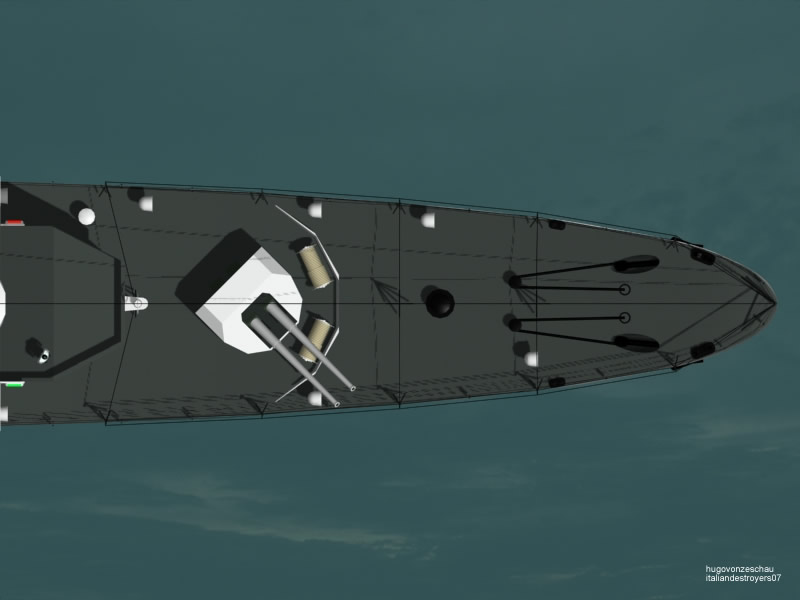

Front
details |
 |
 |
 |
 |

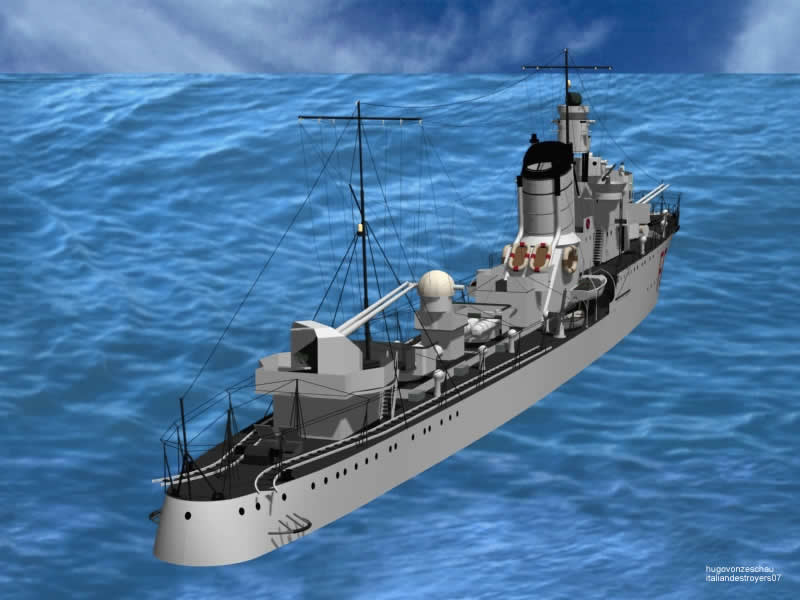

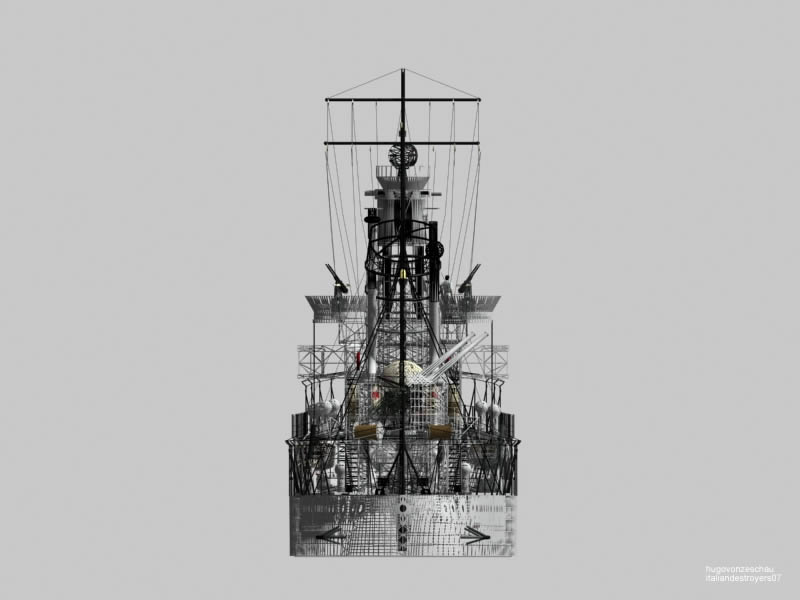

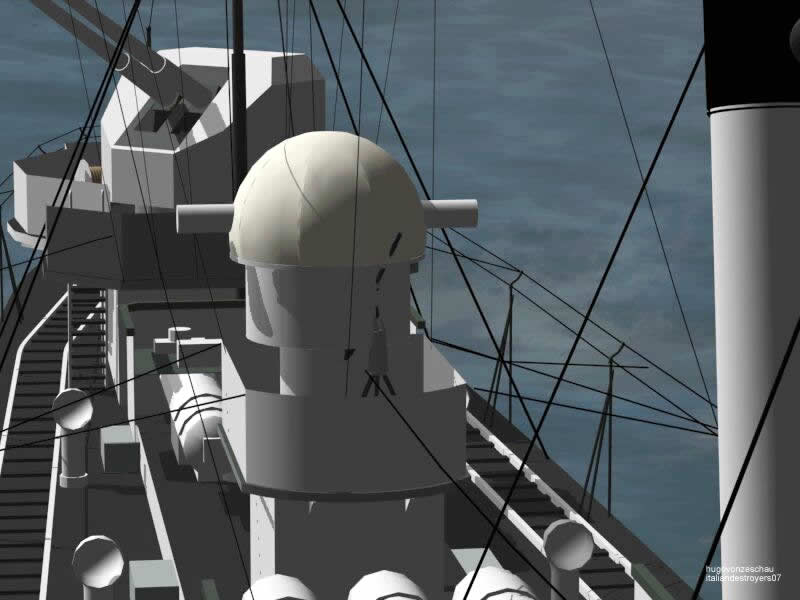

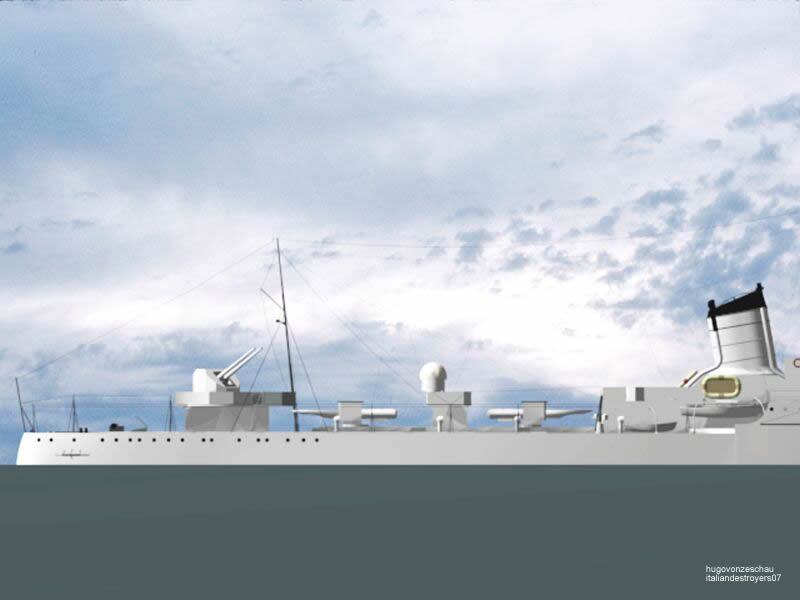

Poop
details |
 |
 |
 |
 |

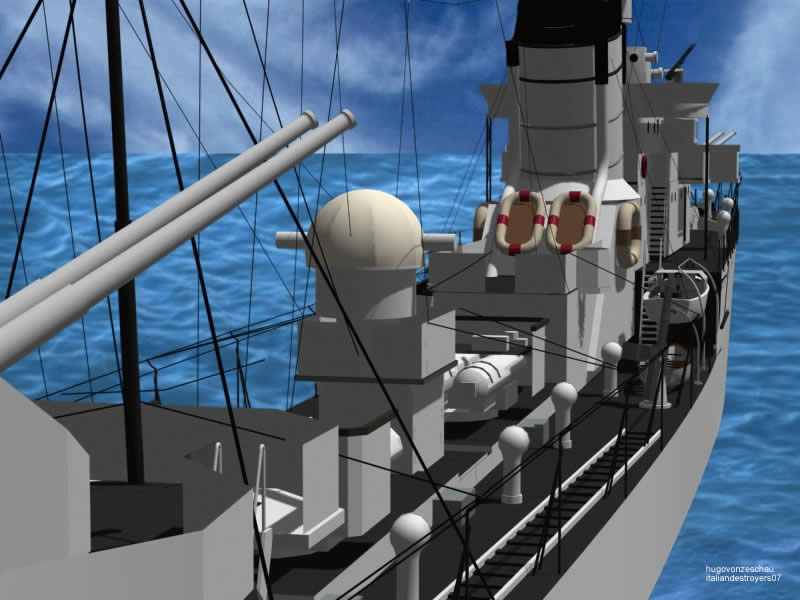

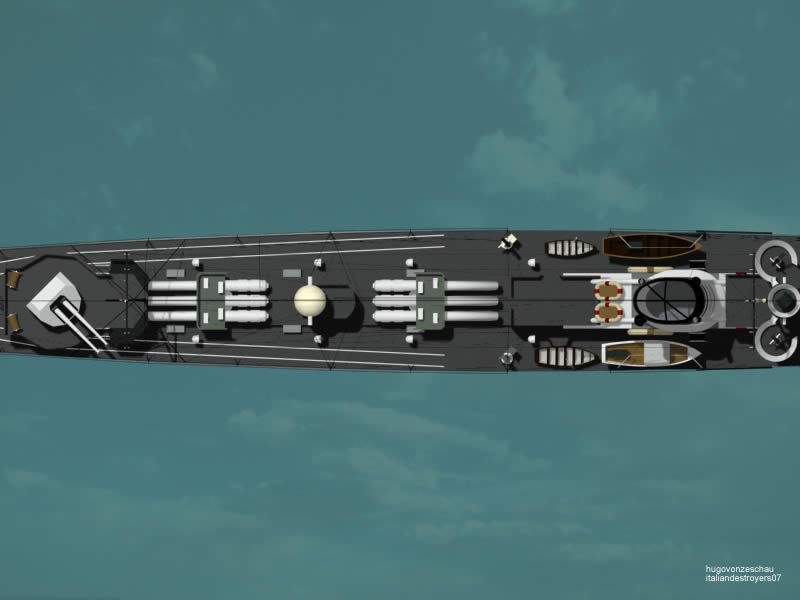

Center
details |
 |
 |
|
 |
 |
 |
 |

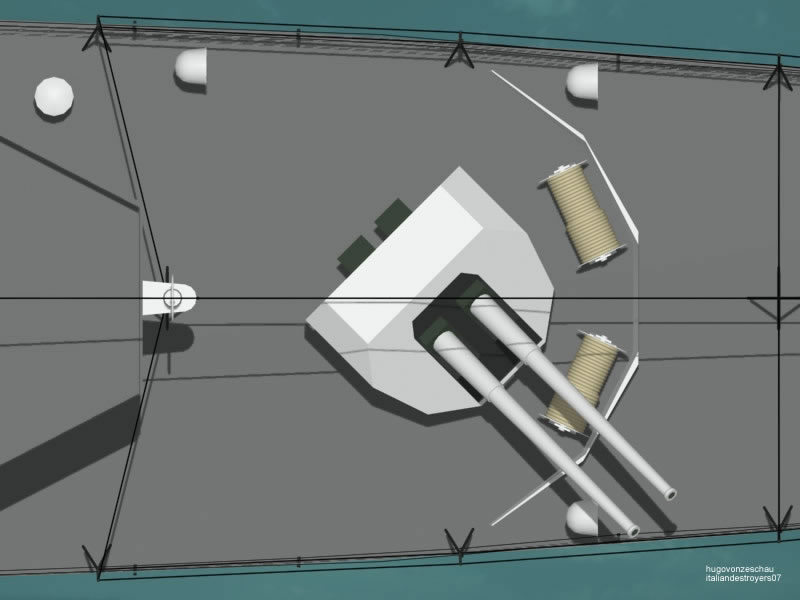

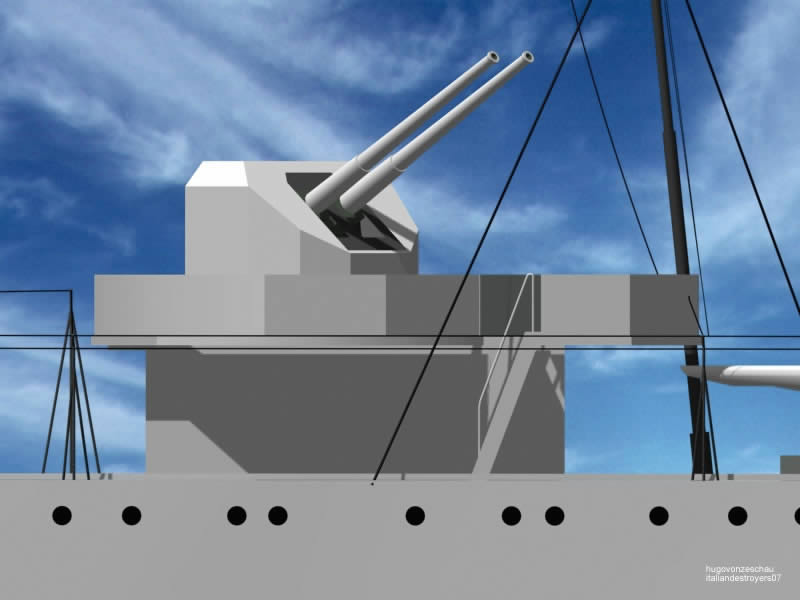

Main
guns details |
 |
 |
|
 |
 |
 |
 |
 |
 |

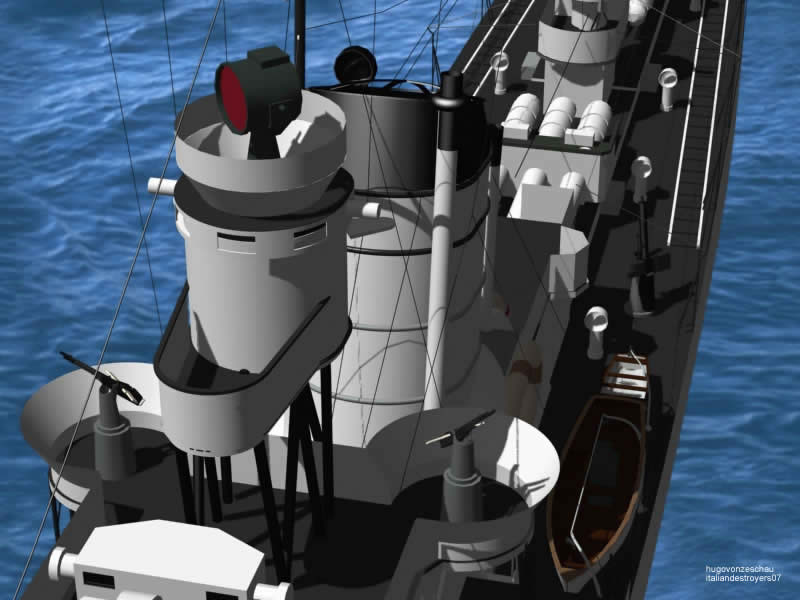

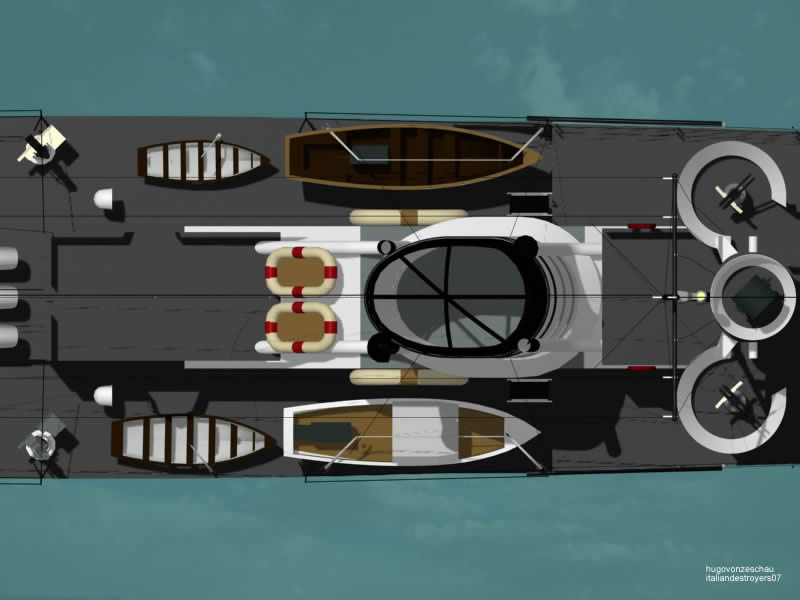

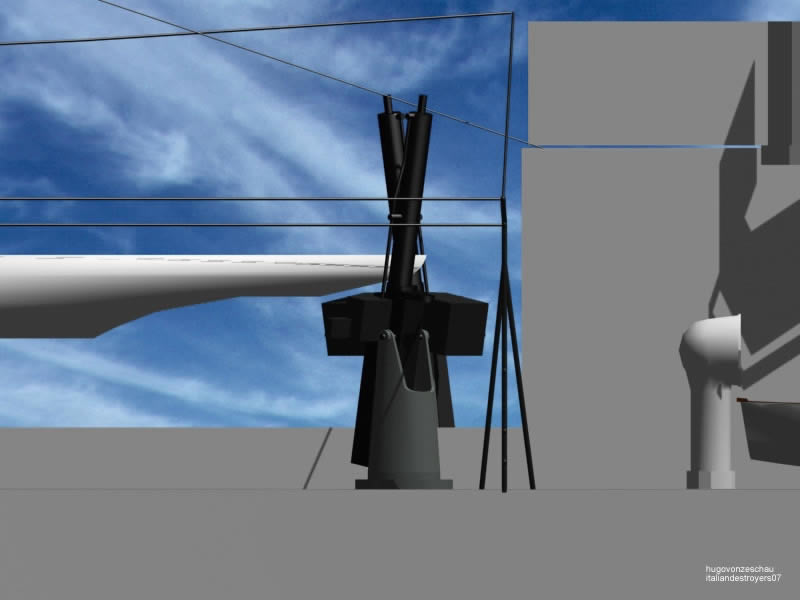

AA
armament details |
 |
 |
|
 |
 |
 |
 |
 |

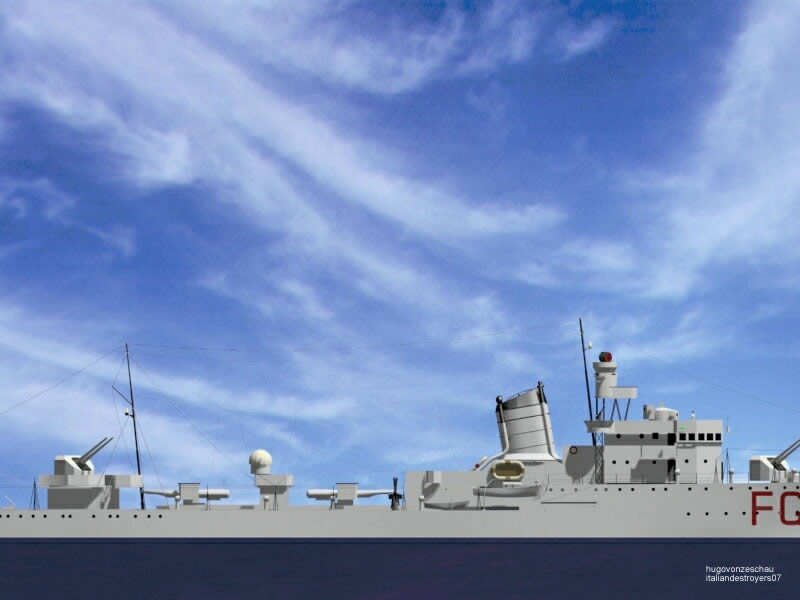

Armament
details |
 |
 |
|
 |
 |
 |
Ciao Cacciatorpediniere Italiani!!

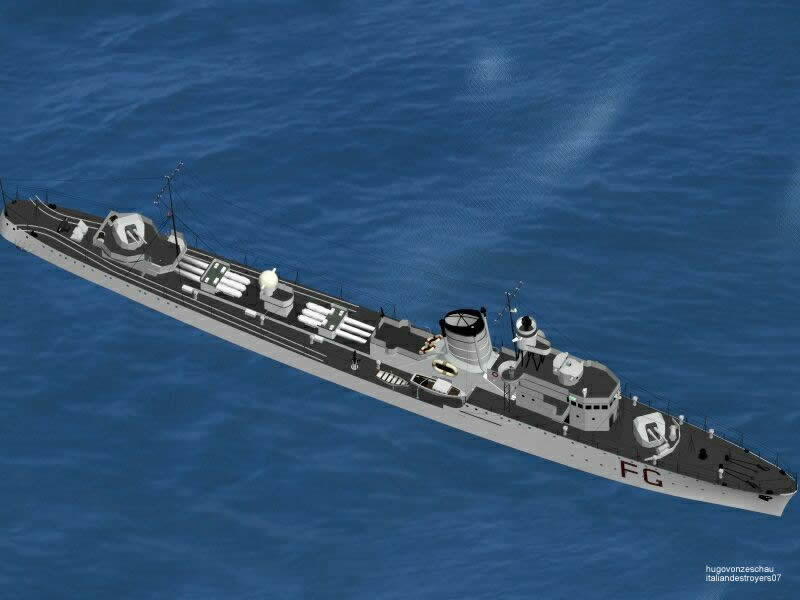

Folgore class destroyer Dardo Seconda Serie The
design was a modification of the Dardo design. They had less beam (50cm
less) than the Dardo class and also carried different machinery. They
had less internal storage space, and this reduced the weapons, the range
and equipment that carried the Folgore. The units were laid down one
year after the Dardo Prima Serie.
They had heavy problems in stability and seaworthy, worst than in the Dardo. They were modified in the years, due to the problems in all the vessels with stability and seaworthy (confirmed tragically with the capsized of the Dardo). Due for the not solved stability problem, they all had allways problem to improve weapons deficiences because the increment in topweight and they operated with reduced dotations of antiarcraft and ASW weapons. They fought in the World War Two and were intensively employed before and after the beginning of World War Two because of the continuous need for escorts. All the vessels of the class were sunk in action with British ships. Baleno was sunk by gunfire on 17 April 1941; Folgore and Fulmine were destroyed by British gunfire in December 1942 during the battle of the convoy Duisburg; Lampo was lost by air attack in April 1943 near the coast of Tunisia. Technical data Displacement: Standard: 1540 t - Full Load: 2100 t Length: 96.23 m - Width: 9,28 m Crew: 156 men Machinery: 2 Parsons geared turbines - HP: 44.000 - 3 Boilers - Max speed: 38 knots - Range: 3600 nautical miles at 12 knots Armament: 4 x 120mm/L50 guns - 2 x 40mm AA guns - 4 x 13.2mm AA MGs - 6 x 21" torpedo tubes - 54 mines Names of the class ships and hull codes
